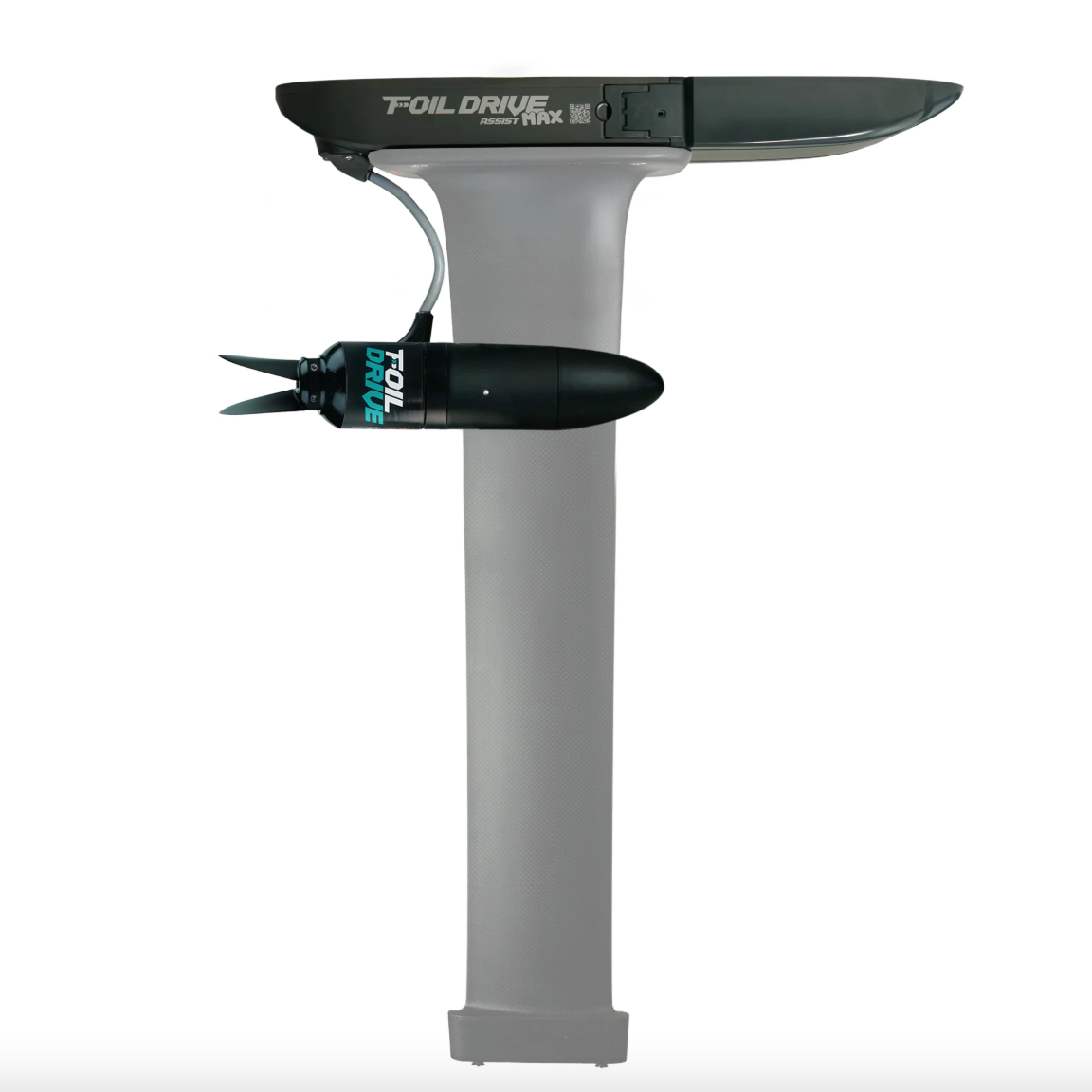

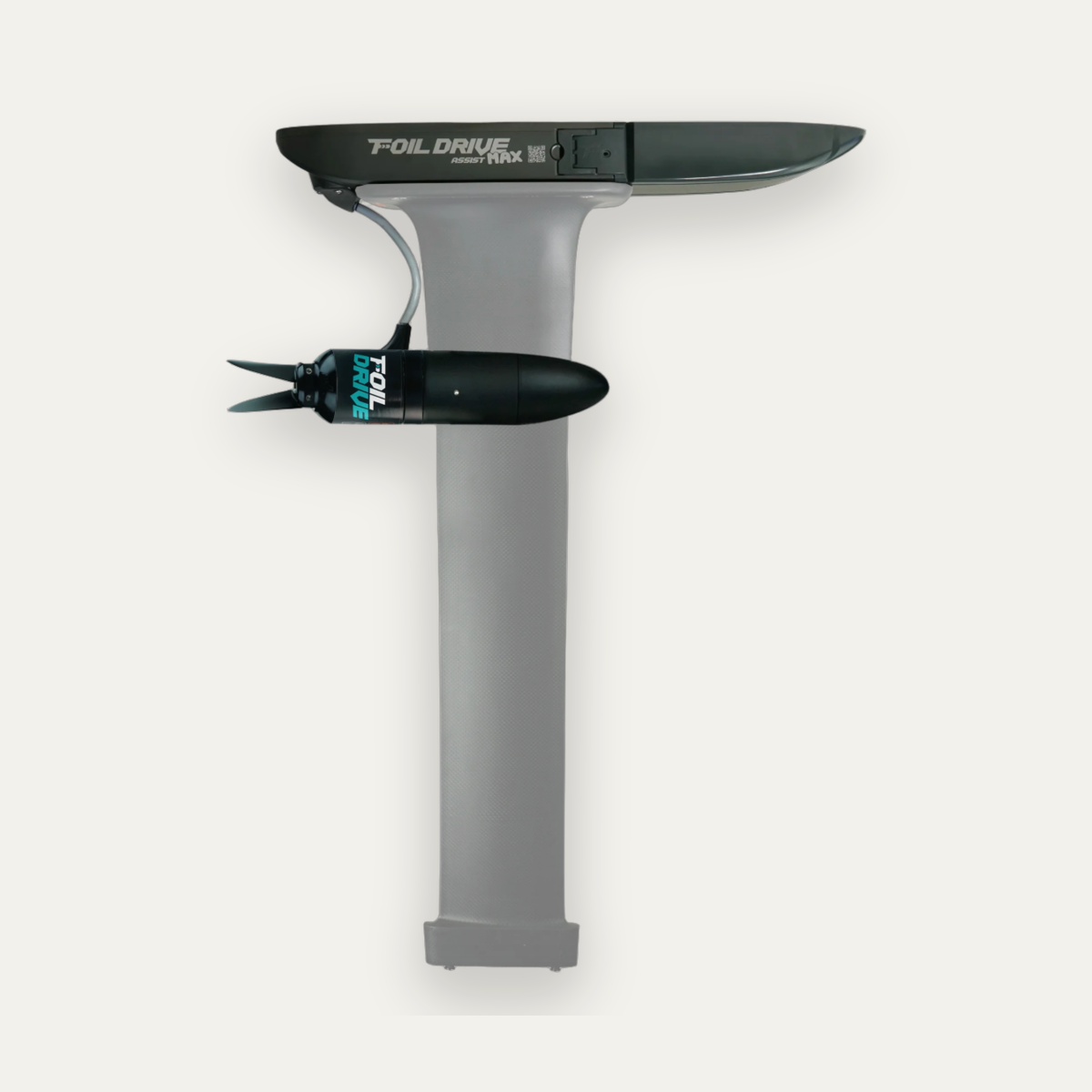

Foil Drive Assist MAX

Foil Drive Assist MAX

R 111 000
R 111 000 R 111 000
Sale Sold out
Tax included. Shipping calculated at checkout.

  • Foil Drive Assist MAX

    FD100/213/235/128-1

    The Assist MAX is the all-rounder Foil Drive system, engineered for the perfect balance between thrust, runtime, and versatility across all foiling disciplines.

    Providing an optimized blend of power, endurance, and weight, The Assist MAX unlocks longer surf sessions, reliable flatwater takeoffs, and easy upwind and downwind riding, and unlimited progression regardless of the conditions.

    The MAX is best suited for riders under 100 kg using small to midlength boards and their preferred foil setups, offering a single system that performs across surf, wing, downwind, wake, flatwater, and light eFoiling.

    The Foil Drive Assist MAX is perfectly suited to those looking for extra thrust for heavier riders or smaller boards and foils, longer ride times and ultimate flexibility of how you choose to foil. Surf, Wing, Downwind, Wake and Flatwater, the Assist MAX does it all!

    Simply choose your desired battery size between the:



    Tech Specs
    • System Nominal Voltage: 40V
    • Battery Capacity Range: 332-594Wh
    • Max Thrust: 29kg / 63.9lbs
    • Top Power to Weight Ratio (Thrust/Weight): 5.7 N/KG
    • Minimum Install Weight*: 4.8kg / 10.5lbs with MAX Sport
    • Dimensions with Battery: L525x W125 x H50mm
    • App Compatibility: Foil Drive App, Android and IOS
    • Water Rating: IP68 Water and Dust Resistance

    What’s Included:

    *Choice of Motor System*
    - Complete High Power Motor w/ 20cm Cable
    - Complete Standard Motor w/ 20cm Cable

    *Choice of Charger AC Lead*
    - US Plug Type
    - AU Plug Type
    - EU Plug Type
    - UK Plug Type

    Choice of Battery

    Foil Drive Assist MAX
    Motor Plug Protector with Keychain
    40v Standard Foil Drive Charger 4amp
    Nose Cone A
    Nose Cone B
    Universal Motor Pod - Rear
    Universal Motor Pod - Short Nose
    Universal Motor Pod - Long Nose
    Universal Motor Pod Keys

    V3 Wireless Throttle Controller
    Controller Wireless Charge Pad and Micro USB Cable
    Controller Wrist Strap

    2x Mast Cable Guide 23cm each
    2x Mast Track Foam Inserts
    2x Nose Cone Rocker Pad
    2x Battery Grease

    Foil Drive Mounting Bolt Bag
    - 4x M8 Locking Tee Nuts
    - 4x M6 Locking Tee Nuts
    - 4x M3 x 20mm Bolts for Locking Tee Nuts
    4x M8 Assist MAX Mast Plate Bolts 80mm
    4x M6 Assist MAX Mast Plate Bolts 80mm

    Foil Drive 2.5mm Driver
    Pick Tool
    Torx T40 Tee Handle Driver
    Torx T30 Tee Handle Driver
    Foil Drive Cleaning Cloth
    Foil Drive Gen2 Carry Case

    Foil Drive Motor and Pod Bolts Bag
    - 4x Motor Pod Bolts (M3 x 12mm)
    - 3x Puck Bolts (M3 x 12mm)
    - 3x Motor Plug Bolts (M4 x 10mm)

    Spare Parts Bag
    - 2x O-Ring Seals - Foil Drive Assist MAX
    - 2x Latch Assembly - Foil Drive Assist MAX
    - 3x Motor Plug Bolts (M4 x 10mm)
    - 7x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
    - 4x Latch Locking Bolts (M3 x 16mm)
    - 2x Propeller Bolts (M3 x 30mm)
    - 2x Latch Pivot Bolts (M3 x 45mm)

    Compatible With:

    MAX High Power Battery
    MAX Power Battery
    MAX Sport Battery
    MAX Travel Battery
    40V Foil Drive Chargers
