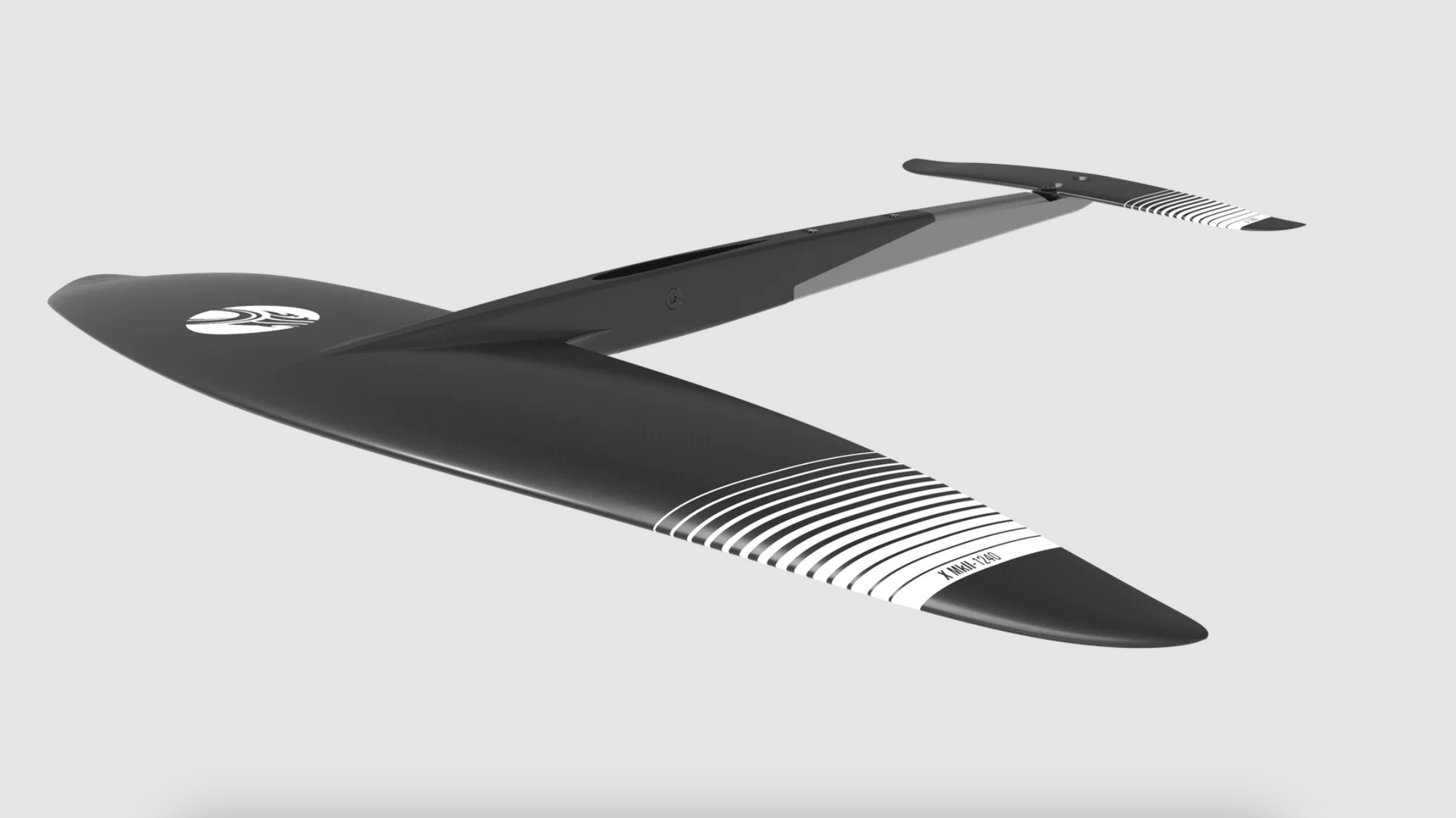

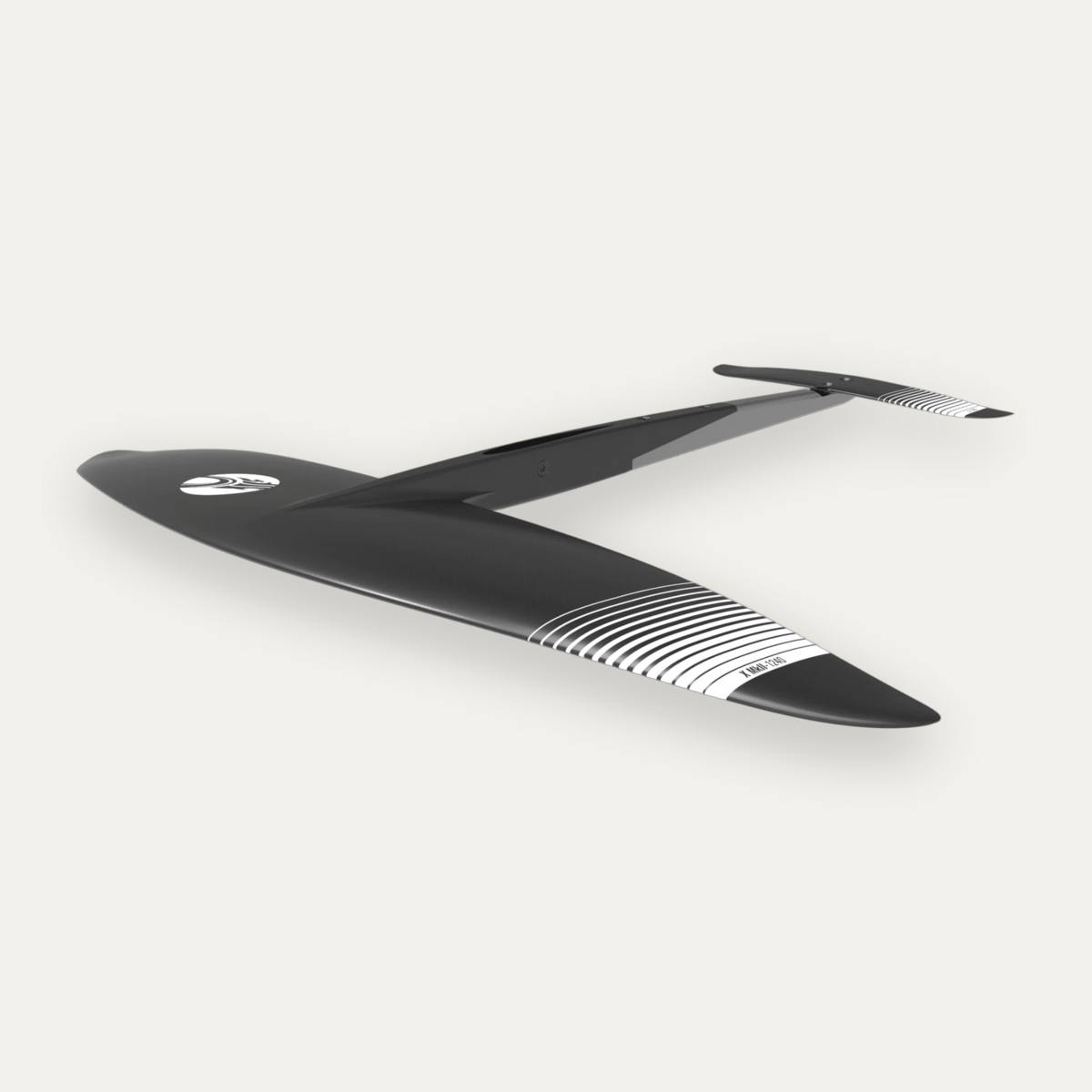

Cabrinha X-Series MKII Foil Kit

Cabrinha X-Series MKII Foil Kit

R 27,280 R 23,185 15% OFF

LIVE FREE - FLY FREE

X-SERIES MKII

FUSION X-SERIES KITS

FREERIDE

SIZES: X700 / X930 / X1240 / X1650 / 2100

When we introduced the X-Series wings, we took Cabrinha’s foil program to a whole new level. Through working alongside SINTEF and the University of Norway where we were able to fully breakdown and simulate hydrofoil performance in the world's largest cavitation tank. From this we have been able to further evolve the X-Series into the industry’s leading all round hydrofoil. Early lift, but with a high top speed has been achieved, and through refined tip shape and profile, you are able to break the tips free, but still be ready to carve into your next turn.

The Fusion X-Series Kits come with everything you need, you just need to add your mast of choice.   (Masts sold separately)

INCLUDED IN KIT

  • Wing & Stabilizer
  • Fusion Fuselage Alloy Medium
  • Track Nut Train X2
  • Screw Set Foam Core Boards
Swept LE, Straight TE, Ultra lean efficient profile, moderate anhedral

  • Loose and agile
  • All round lean profile
  • Refined tip shape
  • Tapered fit
  • Torsional Stiffness
  • Medium AR
  • PMI core
  • Pre Preg construction
  • Modular



  • X700- 700cm^2, WS 640mm, AR 5.85, Chord 140
  • X930- 930cm^2, WS 750mm, AR 6.05, Chord 165
  • X1240- 1240cm^2 WS 870mm, AR 6.10, Chord 190
  • X1650- 1650 cm^2, WS 1010mm, AR 6.18, Chord 220
  • X2100- 2100 cm^2, WS 1150mm, AR 6.01, Chord 255

KEY FEATURES

LOOSE AND AGILE

Through refined profiles, moderate aspect ratio and an all new wingtip shape, the X-Series MkII is the ultimate foil for maneuverability, no matter the board or sport you do.

ALL AROUND LEAN PROFILE

The all around lean profile still maintains the forgiving low-end that the X-Series is known for, but now boasts an increased speed range.

FEELING TIPSEY

The all new tip design allows you to be able to free the tips in a turn, but be confident that the foil will re-enter without cavitation. This is one specific area of research & testing undertaken at the SINTEF facility.

TAPERED FIT

The ergonomic tapered connection between the fuselage and mast provides the ultimate in rigidity, while still being easy to assemble and disassemble.

TORSIONAL STIFFNESS

Through the use of a PMI core and the layered Pre Preg carbon sheets, the X-Series MkII sets a new benchmark for hydrofoil torsional stiffness.

MEDIUM AR

The medium aspect ratio design allows for early lift and a stable forgiving ride.
